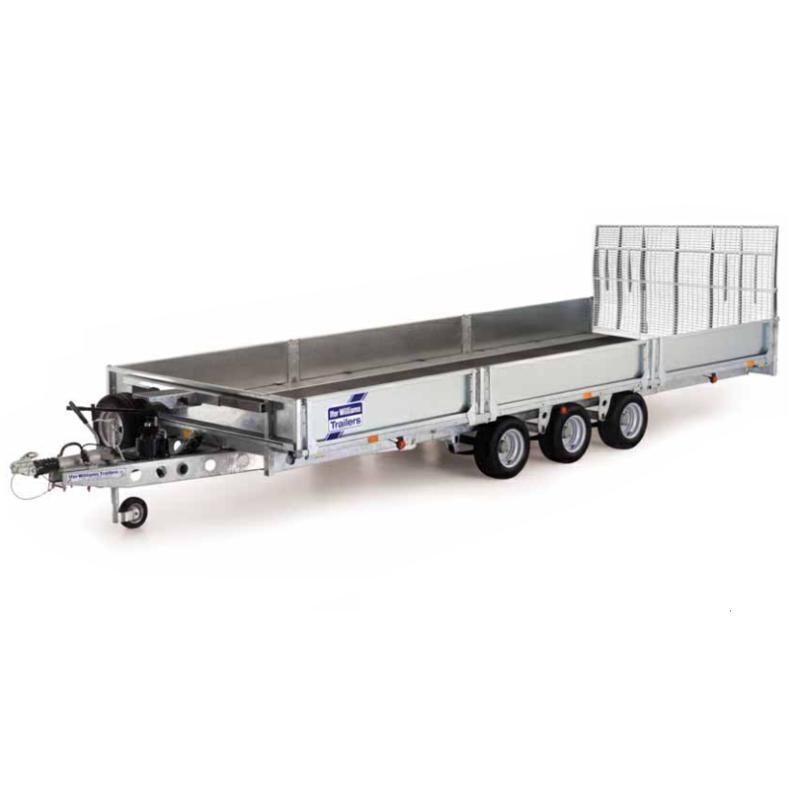

Ifor Williams TB5021-353 Tiltbed Tri-Axle Trailer
Bed Length 5032mm/16' 6" x Bed Width 2040/6' 8"mm, Gross Weight 3500kg, 195/55R10 Tyres.
To view/download more information on sizes, specifications or prices click on the links below:
Ifor Williams Tiltbed Brochure & Price List
Standard Equipment
- Spare wheel
- 10 Lashing points
- Heavy duty jockey wheel
Optional Extras
- Mesh Ramp
- Hinged mesh skids
- Removable skids & carrier
- Headboard
- Headboard & dropsides
- Mesh sides
- Wheel chocks
- Winch manual or electric
Tiltbed Series
The Ifor Williams Trailers Tilted Range has been designed specifically for the landscape and car transportation industry. There are 6 models to choose from all providing a very generous overall width of 2100mm and 4 length options, two of which are tri-axle models. This TB range of trailers complements and extends on the original tiltbed trailers, the CT166 and CT167.
The range is ideal for loading ground care machinery and for anyone who requires a car trailer but also provides the added versatility of a flatbed trailer with optional headboard, mesh ramp, dropsides & mesh sides. The low bed height and reduced loading angles further increase the versatility of this trailer range. Ifor Williams have achieved these improvements whilst still retaining all of the benefits associated with the Ifor Williams robust solid beam axles and leaf spring suspension. This TB range of trailers is not recommended for loading indoor Access Platforms you would need to look at the GH Plant Brochure for trailers to suit.
There are available 3 different rear loading options, a curved full width mesh ramp, hinged mesh skids or removable loading skids. The removable skids can be stored in a carrier accessed from behind the number plate. There are also a selection of manual and electric winches available for fitting along with a winch mounting bracket.
