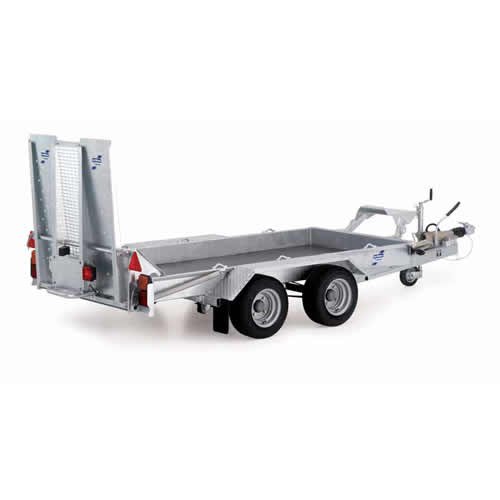

Higher Spec Ifor Williams GH94 Trailer with 3' 9" Mesh Ramp & LED lights front & rear

9' 2" Long x 4' 3" Wide, Gross Weight 2700kg, 185/70R13C Tyres.

The GH plant trailer gap spec comes with a 40mm eye and is suitable for carrying a wide selection of plant machinery, including tracked excavators and many items of wheeled equipment such as rollers and a variety of access platforms. It has a payload of 2240kg and the loading angle during loading is 13 - 15 degrees

Specification & Features:

• Galvanized steel chassis, panels and framework
• 24mm phenolic coated laminate platform
• Spring assisted ramp with integrated ramp supports
• Raised bucket rest with bucket lip
• Ifor Williams beam axles (Two), parabolic leaf spring suspension system
• Sealed for life unitized wheel bearings
• 185/70R13 tyres 5 stud
• Tyre Pressure 6 Bar (87PSI)
• Full regulation lighting with detachable lighting cable
• 12v/24v LED Lights
• Step-on steel treadplate mudguards
• Heavy duty jockey wheel
• Five pairs of 500kg lashing points (welded) per trailer
• Three pairs of 500kg lashing points (bolt-on) per trailer
• 40mm coupling eye - tow height when laden 322mm
