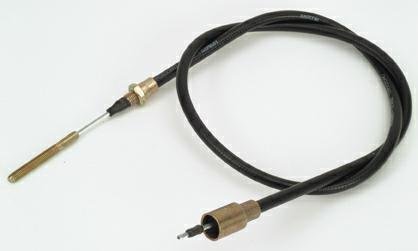

Type 3 Brake Cable for Knott Brakes
22mm Tubular End Fitting, Inner 2200 Outer 1990
Used on Ifor Williams trailers manufactured AFTER September 1992 (to check these are correct for your trailer your wheel bolts should be bolted onto the drum & should NOT have wheel studs & nuts.)
This cable is suitable for the following Ifor Williams trailers. (Brake cables should ideally be changed in pairs i.e for both sides, either order 2 front cables or 2 rear cables)
Corresponding front cables part code for each trailer is shown in the first column
| Type | Model | Front Cable | Rear Cable |
| Box Van | BV126G | P0142 | P0145 |
| Flatbed | LM147G | P0142 | P0145 |
| Flatbed | LM167G | P0142 | P0145 |
| Tiltbed | CT166G | P0142 | P0145 |
| General Duty | GD126G | P0142 | P0145 |
| Large Horsebox | HB510XL | P0142 | P0145 |
| Livestock | TA510G 14 | P0142 | P0145 |
| Tipper | TT105G | P0142 | P0145 |
| Livestock | TA510G 14 TRI | P0142 | P0145 |
| Plant | GP146 | P0143 | P0145 |
Corresponding front & rear cables part codes for each trailer are shown in the first & second columns
| Type | Model | Front Cable | Middle Axle | Rear Cable |
| Flatbed | LM126G/TRI | P0141 | P0143 | P0145 |
| Flatbed | LM146G/TRI | P0141 | P0143 | P0145 |
| Flatbed | LM166G/TRI | P0141 | P0143 | P0145 |
Please be aware that these are genuine Ifor Williams parts supplied to us directly from Ifor Williams Trailers Ltd.
Viiew or download the Brakes Section of the Ifor Williams Parts Catalogue
