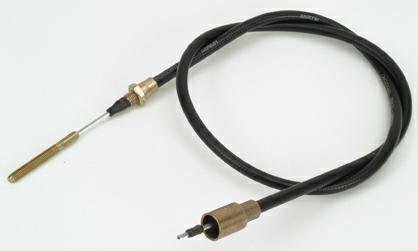

Type 3 Brake Cable Knott Brakes
22mm Tubular End Fitting, Inner 1840 Outer 1630
Used on Ifor Williams trailers manufactured AFTER September 1992 (to check these are correct for your trailer your wheel bolts should be bolted onto the drum & should NOT have wheel studs & nuts.)
This cable is suitable for the following Ifor Williams trailers:
| Type | Model | Front Cable | Rear Cable |
| Box Van | BV85G | P0141 | P0144 |
| Box Van | BV105G | P0141 | P0144 |
| Box Van | BV106G | P0142 | P0144 |
| Eurolight | EL142-2512 | P0140 | P0144 |
| Eurolight | EL142-2515 | P0141 | P0144 |
| Eurolight | EL142-3015 | P0142 | P0144 |
| Eurolight | EL142-3615 | P0142 | P0144 |
| Flatbed | LM105G, LT105G | P0141 | P0144 |
| Flatbed | LM125G, LT125G | P0141 | P0144 |
| Flatbed | LM106G, LT106G | P0141 | P0144 |
| Flatbed | LM126G, LT126G | P0141 | P0144 |
| Flatbed | LM146G, LT146G | P0141 | P0144 |
| Flatbed | LM166G | P0141 | P0144 |
| Flatbed | LM146B | P0141 | P0144 |
| Flatbed | LM166B | P0141 | P0144 |
| General Duty | GD85G, GD105G | P0141 | P0144 |
| General Duty | GD125G | P0142 | P0144 |
| Livestock | TA5G 8 , TA5G 10 | P0141 | P0144 |
| Horsebox | HB401, HB403 | P0141 | P0144 |
| Horsebox | HB505, HB506 | P0142 | P0144 |
| Horsebox | HB510, HB511 | P0142 | P0144 |
| Plant | GP106G, GP126G | P0142 | P0144 |
| Plant | GH1054BT | P0141 | P0144 |
| Tipper | TT85G | P0141 | P0144 |
| Flatbed | LM187G/TRI | P0142 | P0144 |
| Livestock | DP120G 12 TRI | P0142 | P0144 |
| Livestock | DP120G 14 TRI | P0142 | P0144 |
Corresponding front cables part code for each trailer is shown in the first column.
(Brake cables should ideally be changed in pairs i.e for both sides, either order 2 front cables or 2 rear cables)
Please be aware that these are genuine Ifor Williams parts supplied to us directly from Ifor Williams Trailers Ltd.
Viiew or download the Brakes Section of the Ifor Williams Parts Catalogue
